Rollenleiste Typ 100 – 1200mm

Name: Robuste Rollenleiste Typ 100 mit 1mm Profil - Schwarz
SKU: LR100-33-1-1200
Price: 17.79 EUR
Availability: InStock

🔍

Rollenleiste Typ 100 – 1200mm

Liefertermin: 1-2 Wochen

17,79 € (17,79 € VAT)

948 vorrätig

Artikelnummer: LR100-33-1-1200 Kategorie: Universale Rollenleisten Schlagwörter: 1200mm, Rollenleisten

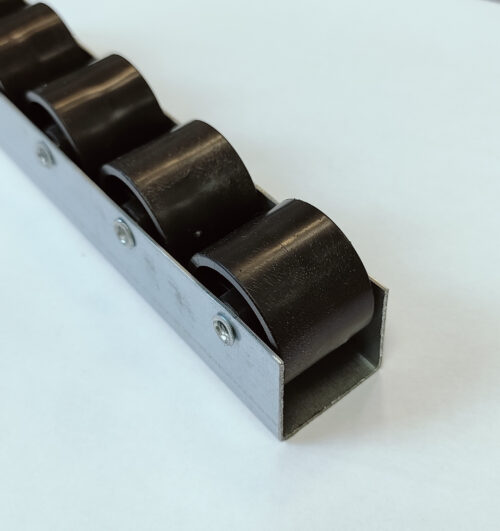

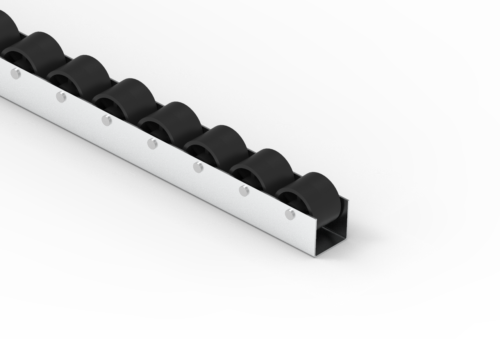

Die Rollenleiste Typ 100 | 1200mm

Die Rollenleiste Typ 100 1200mm mit einer Profildicke von 1 mm ist eine robuste und zuverlässige Transportlösung für industrielle Anwendungen. Aus verzinktem Stahl gefertigt, bietet sie eine hervorragende Korrosionsbeständigkeit und Langlebigkeit. Die Röllchen aus schwarzem Polypropylen (PP) mit einem Durchmesser von 29 mm sorgen für eine reibungsarme Bewegung, unterstützt durch Gleitlager. Die Rollenleiste kann eine Last von bis zu 10 kg pro Rolle tragen, wobei der Röllchenabstand 33 mm beträgt. Die Röllchenlänge liegt bei 23 mm, und die Arbeitstemperatur der Leiste reicht von -25°C bis +50°C, was sie für verschiedenste Umgebungen geeignet macht. Die Montage erfolgt durch Stahlbolzen mit einem Durchmesser von 5 mm, die eine einfache Installation und stabile Verbindung sicherstellen.

Probe

Gewicht	1,5 kg

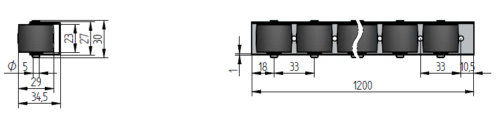

Maße	1200 × 30 × 34,5 mm

Datei STP

https://rollenleisten.de/wp-content/uploads/2024/04/Rollenleiste-T100_33_1200.zip

Montagehinweise

Listwa 100 – Montagehinweise

img:is([sizes=auto i],[sizes^="auto," i]){contain-intrinsic-size:3000px 1500px}:root{--wp-block-synced-color:#7a00df;--wp-block-synced-color--rgb:122,0,223;--wp-bound-block-color:var(--wp-block-synced-color);--wp-editor-canvas-background:#ddd;--wp-admin-theme-color:#007cba;--wp-admin-theme-color--rgb:0,124,186;--wp-admin-theme-color-darker-10:#006ba1;--wp-admin-theme-color-darker-10--rgb:0,107,160.5;--wp-admin-theme-color-darker-20:#005a87;--wp-admin-theme-color-darker-20--rgb:0,90,135;--wp-admin-border-width-focus:2px}@media (min-resolution:192dpi){:root{--wp-admin-border-width-focus:1.5px}}.wp-element-button{cursor:pointer}:root .has-very-light-gray-background-color{background-color:#eee}:root .has-very-dark-gray-background-color{background-color:#313131}:root .has-very-light-gray-color{color:#eee}:root .has-very-dark-gray-color{color:#313131}:root .has-vivid-green-cyan-to-vivid-cyan-blue-gradient-background{background:linear-gradient(135deg,#00d084,#0693e3)}:root .has-purple-crush-gradient-background{background:linear-gradient(135deg,#34e2e4,#4721fb 50%,#ab1dfe)}:root .has-hazy-dawn-gradient-background{background:linear-gradient(135deg,#faaca8,#dad0ec)}:root .has-subdued-olive-gradient-background{background:linear-gradient(135deg,#fafae1,#67a671)}:root .has-atomic-cream-gradient-background{background:linear-gradient(135deg,#fdd79a,#004a59)}:root .has-nightshade-gradient-background{background:linear-gradient(135deg,#330968,#31cdcf)}:root .has-midnight-gradient-background{background:linear-gradient(135deg,#020381,#2874fc)}:root{--wp--preset--font-size--normal:16px;--wp--preset--font-size--huge:42px}.has-regular-font-size{font-size:1em}.has-larger-font-size{font-size:2.625em}.has-normal-font-size{font-size:var(--wp--preset--font-size--normal)}.has-huge-font-size{font-size:var(--wp--preset--font-size--huge)}:root .has-text-align-center{text-align:center}:root .has-text-align-left{text-align:left}:root .has-text-align-right{text-align:right}.has-fit-text{white-space:nowrap !important}#end-resizable-editor-section{display:none}.aligncenter{clear:both}.items-justified-left{justify-content:flex-start}.items-justified-center{justify-content:center}.items-justified-right{justify-content:flex-end}.items-justified-space-between{justify-content:space-between}.screen-reader-text{word-wrap:normal !important;border:0;clip-path:inset(50%);height:1px;margin:-1px;overflow:hidden;padding:0;position:absolute;width:1px}.screen-reader-text:focus{background-color:#ddd;clip-path:none;color:#444;display:block;font-size:1em;height:auto;left:5px;line-height:normal;padding:15px 23px 14px;text-decoration:none;top:5px;width:auto;z-index:100000}html :where(.has-border-color){border-style:solid}html :where([style*=border-color]){border-style:solid}html :where([style*=border-top-color]){border-top-style:solid}html :where([style*=border-right-color]){border-right-style:solid}html :where([style*=border-bottom-color]){border-bottom-style:solid}html :where([style*=border-left-color]){border-left-style:solid}html :where([style*=border-width]){border-style:solid}html :where([style*=border-top-width]){border-top-style:solid}html :where([style*=border-right-width]){border-right-style:solid}html :where([style*=border-bottom-width]){border-bottom-style:solid}html :where([style*=border-left-width]){border-left-style:solid}html :where(img[class*=wp-image-]){height:auto;max-width:100%}:where(figure){margin:0 0 1em}html :where(.is-position-sticky){--wp-admin--admin-bar--position-offset:var(--wp-admin--admin-bar--height,0px)}@media screen and (max-width:600px){html :where(.is-position-sticky){--wp-admin--admin-bar--position-offset:0px}}:root{--wp--preset--aspect-ratio--square:1;--wp--preset--aspect-ratio--4-3:4/3;--wp--preset--aspect-ratio--3-4:3/4;--wp--preset--aspect-ratio--3-2:3/2;--wp--preset--aspect-ratio--2-3:2/3;--wp--preset--aspect-ratio--16-9:16/9;--wp--preset--aspect-ratio--9-16:9/16;--wp--preset--color--black:#000;--wp--preset--color--cyan-bluish-gray:#abb8c3;--wp--preset--color--white:#fff;--wp--preset--color--pale-pink:#f78da7;--wp--preset--color--vivid-red:#cf2e2e;--wp--preset--color--luminous-vivid-orange:#ff6900;--wp--preset--color--luminous-vivid-amber:#fcb900;--wp--preset--color--light-green-cyan:#7bdcb5;--wp--preset--color--vivid-green-cyan:#00d084;--wp--preset--color--pale-cyan-blue:#8ed1fc;--wp--preset--color--vivid-cyan-blue:#0693e3;--wp--preset--color--vivid-purple:#9b51e0;--wp--preset--color--palette-color-1:var(--theme-palette-color-1,#fca311);--wp--preset--color--palette-color-2:var(--theme-palette-color-2,#23396c);--wp--preset--color--palette-color-3:var(--theme-palette-color-3,#707070);--wp--preset--color--palette-color-4:var(--theme-palette-color-4,#000);--wp--preset--color--palette-color-5:var(--theme-palette-color-5,#e0e0e0);--wp--preset--color--palette-color-6:var(--theme-palette-color-6,#f1f1f1);--wp--preset--color--palette-color-7:var(--theme-palette-color-7,#fafafa);--wp--preset--color--palette-color-8:var(--theme-palette-color-8,#fff);--wp--preset--gradient--vivid-cyan-blue-to-vivid-purple:linear-gradient(135deg,#0693e3 0%,#9b51e0 100%);--wp--preset--gradient--light-green-cyan-to-vivid-green-cyan:linear-gradient(135deg,#7adcb4 0%,#00d082 100%);--wp--preset--gradient--luminous-vivid-amber-to-luminous-vivid-orange:linear-gradient(135deg,#fcb900 0%,#ff6900 100%);--wp--preset--gradient--luminous-vivid-orange-to-vivid-red:linear-gradient(135deg,#ff6900 0%,#cf2e2e 100%);--wp--preset--gradient--very-light-gray-to-cyan-bluish-gray:linear-gradient(135deg,#eee 0%,#a9b8c3 100%);--wp--preset--gradient--cool-to-warm-spectrum:linear-gradient(135deg,#4aeadc 0%,#9778d1 20%,#cf2aba 40%,#ee2c82 60%,#fb6962 80%,#fef84c 100%);--wp--preset--gradient--blush-light-purple:linear-gradient(135deg,#ffceec 0%,#9896f0 100%);--wp--preset--gradient--blush-bordeaux:linear-gradient(135deg,#fecda5 0%,#fe2d2d 50%,#6b003e 100%);--wp--preset--gradient--luminous-dusk:linear-gradient(135deg,#ffcb70 0%,#c751c0 50%,#4158d0 100%);--wp--preset--gradient--pale-ocean:linear-gradient(135deg,#fff5cb 0%,#b6e3d4 50%,#33a7b5 100%);--wp--preset--gradient--electric-grass:linear-gradient(135deg,#caf880 0%,#71ce7e 100%);--wp--preset--gradient--midnight:linear-gradient(135deg,#020381 0%,#2874fc 100%);--wp--preset--gradient--juicy-peach:linear-gradient(to right,#ffecd2 0%,#fcb69f 100%);--wp--preset--gradient--young-passion:linear-gradient(to right,#ff8177 0%,#ff867a 0%,#ff8c7f 21%,#f99185 52%,#cf556c 78%,#b12a5b 100%);--wp--preset--gradient--true-sunset:linear-gradient(to right,#fa709a 0%,#fee140 100%);--wp--preset--gradient--morpheus-den:linear-gradient(to top,#30cfd0 0%,#330867 100%);--wp--preset--gradient--plum-plate:linear-gradient(135deg,#667eea 0%,#764ba2 100%);--wp--preset--gradient--aqua-splash:linear-gradient(15deg,#13547a 0%,#80d0c7 100%);--wp--preset--gradient--love-kiss:linear-gradient(to top,#ff0844 0%,#ffb199 100%);--wp--preset--gradient--new-retrowave:linear-gradient(to top,#3b41c5 0%,#a981bb 49%,#ffc8a9 100%);--wp--preset--gradient--plum-bath:linear-gradient(to top,#cc208e 0%,#6713d2 100%);--wp--preset--gradient--high-flight:linear-gradient(to right,#0acffe 0%,#495aff 100%);--wp--preset--gradient--teen-party:linear-gradient(135deg,#ff057c 0%,#8d0b93 50%,#321575 100%);--wp--preset--gradient--fabled-sunset:linear-gradient(135deg,#231557 0%,#44107a 29%,#ff1361 67%,#fff800 100%);--wp--preset--gradient--arielle-smile:radial-gradient(circle 248px at center,#16d9e3 0%,#30c7ec 47%,#46aef7 100%);--wp--preset--gradient--itmeo-branding:linear-gradient(180deg,#2af598 0%,#009efd 100%);--wp--preset--gradient--deep-blue:linear-gradient(to right,#6a11cb 0%,#2575fc 100%);--wp--preset--gradient--strong-bliss:linear-gradient(to right,#f78ca0 0%,#f9748f 19%,#fd868c 60%,#fe9a8b 100%);--wp--preset--gradient--sweet-period:linear-gradient(to top,#3f51b1 0%,#5a55ae 13%,#7b5fac 25%,#8f6aae 38%,#a86aa4 50%,#cc6b8e 62%,#f18271 75%,#f3a469 87%,#f7c978 100%);--wp--preset--gradient--purple-division:linear-gradient(to top,#7028e4 0%,#e5b2ca 100%);--wp--preset--gradient--cold-evening:linear-gradient(to top,#0c3483 0%,#a2b6df 100%,#6b8cce 100%,#a2b6df 100%);--wp--preset--gradient--mountain-rock:linear-gradient(to right,#868f96 0%,#596164 100%);--wp--preset--gradient--desert-hump:linear-gradient(to top,#c79081 0%,#dfa579 100%);--wp--preset--gradient--ethernal-constance:linear-gradient(to top,#09203f 0%,#537895 100%);--wp--preset--gradient--happy-memories:linear-gradient(300deg,#ff5858 0%,#f09819 100%);--wp--preset--gradient--grown-early:linear-gradient(to top,#0ba360 0%,#3cba92 100%);--wp--preset--gradient--morning-salad:linear-gradient(135deg,#b7f8db 0%,#50a7c2 100%);--wp--preset--gradient--night-call:linear-gradient(135deg,#ac32e4 0%,#7918f2 48%,#4801ff 100%);--wp--preset--gradient--mind-crawl:linear-gradient(135deg,#473b7b 0%,#3584a7 51%,#30d2be 100%);--wp--preset--gradient--angel-care:linear-gradient(135deg,#ffe29f 0%,#ffa99f 48%,#ff719a 100%);--wp--preset--gradient--juicy-cake:linear-gradient(to top,#e14fad 0%,#f9d423 100%);--wp--preset--gradient--rich-metal:linear-gradient(to right,#d7d2cc 0%,#304352 100%);--wp--preset--gradient--mole-hall:linear-gradient(340deg,#616161 0%,#9bc5c3 100%);--wp--preset--gradient--cloudy-knoxville:linear-gradient(120deg,#fdfbfb 0%,#ebedee 100%);--wp--preset--gradient--soft-grass:linear-gradient(to top,#c1dfc4 0%,#deecdd 100%);--wp--preset--gradient--saint-petersburg:linear-gradient(135deg,#f5f7fa 0%,#c3cfe2 100%);--wp--preset--gradient--everlasting-sky:linear-gradient(135deg,#fdfcfb 0%,#e2d1c3 100%);--wp--preset--gradient--kind-steel:linear-gradient(340deg,#e9defa 0%,#fbfcdb 100%);--wp--preset--gradient--over-sun:linear-gradient(60deg,#abecd6 0%,#fbed96 100%);--wp--preset--gradient--premium-white:linear-gradient(to top,#d5d4d0 0%,#d5d4d0 1%,#eeeeec 31%,#efeeec 75%,#e9e9e7 100%);--wp--preset--gradient--clean-mirror:linear-gradient(45deg,#93a5cf 0%,#e4efe9 100%);--wp--preset--gradient--wild-apple:linear-gradient(to top,#d299c2 0%,#fef9d7 100%);--wp--preset--gradient--snow-again:linear-gradient(to top,#e6e9f0 0%,#eef1f5 100%);--wp--preset--gradient--confident-cloud:linear-gradient(to top,#dad4ec 0%,#dad4ec 1%,#f3e7e9 100%);--wp--preset--gradient--glass-water:linear-gradient(to top,#dfe9f3 0%,white 100%);--wp--preset--gradient--perfect-white:linear-gradient(135deg,#e3fdf5 0%,#ffe6fa 100%);--wp--preset--font-size--small:13px;--wp--preset--font-size--medium:20px;--wp--preset--font-size--large:clamp(22px,1.375rem + ((1vw - 3.2px) * .625),30px);--wp--preset--font-size--x-large:clamp(30px,1.875rem + ((1vw - 3.2px) * 1.563),50px);--wp--preset--font-size--xx-large:clamp(45px,2.813rem + ((1vw - 3.2px) * 2.734),80px);--wp--preset--spacing--20:.44rem;--wp--preset--spacing--30:.67rem;--wp--preset--spacing--40:1rem;--wp--preset--spacing--50:1.5rem;--wp--preset--spacing--60:2.25rem;--wp--preset--spacing--70:3.38rem;--wp--preset--spacing--80:5.06rem;--wp--preset--shadow--natural:6px 6px 9px rgba(0,0,0,.2);--wp--preset--shadow--deep:12px 12px 50px rgba(0,0,0,.4);--wp--preset--shadow--sharp:6px 6px 0px rgba(0,0,0,.2);--wp--preset--shadow--outlined:6px 6px 0px -3px #fff,6px 6px #000;--wp--preset--shadow--crisp:6px 6px 0px #000}:root{--wp--style--global--content-size:var(--theme-block-max-width);--wp--style--global--wide-size:var(--theme-block-wide-max-width)}:where(body){margin:0}.wp-site-blocks>.alignleft{float:left;margin-right:2em}.wp-site-blocks>.alignright{float:right;margin-left:2em}.wp-site-blocks>.aligncenter{justify-content:center;margin-left:auto;margin-right:auto}:where(.wp-site-blocks)>*{margin-block-start:var(--theme-content-spacing);margin-block-end:0}:where(.wp-site-blocks)>:first-child{margin-block-start:0}:where(.wp-site-blocks)>:last-child{margin-block-end:0}:root{--wp--style--block-gap:var(--theme-content-spacing)}:root :where(.is-layout-flow)>:first-child{margin-block-start:0}:root :where(.is-layout-flow)>:last-child{margin-block-end:0}:root :where(.is-layout-flow)>*{margin-block-start:var(--theme-content-spacing);margin-block-end:0}:root :where(.is-layout-constrained)>:first-child{margin-block-start:0}:root :where(.is-layout-constrained)>:last-child{margin-block-end:0}:root :where(.is-layout-constrained)>*{margin-block-start:var(--theme-content-spacing);margin-block-end:0}:root :where(.is-layout-flex){gap:var(--theme-content-spacing)}:root :where(.is-layout-grid){gap:var(--theme-content-spacing)}.is-layout-flow>.alignleft{float:left;margin-inline-start:0;margin-inline-end:2em}.is-layout-flow>.alignright{float:right;margin-inline-start:2em;margin-inline-end:0}.is-layout-flow>.aligncenter{margin-left:auto !important;margin-right:auto !important}.is-layout-constrained>.alignleft{float:left;margin-inline-start:0;margin-inline-end:2em}.is-layout-constrained>.alignright{float:right;margin-inline-start:2em;margin-inline-end:0}.is-layout-constrained>.aligncenter{margin-left:auto !important;margin-right:auto !important}.is-layout-constrained>:where(:not(.alignleft):not(.alignright):not(.alignfull)){max-width:var(--wp--style--global--content-size);margin-left:auto !important;margin-right:auto !important}.is-layout-constrained>.alignwide{max-width:var(--wp--style--global--wide-size)}body .is-layout-flex{display:flex}.is-layout-flex{flex-wrap:wrap;align-items:center}.is-layout-flex>:is(*, div){margin:0}body .is-layout-grid{display:grid}.is-layout-grid>:is(*, div){margin:0}body{padding-top:0px;padding-right:0px;padding-bottom:0px;padding-left:0px}:root :where(.wp-element-button, .wp-block-button__link){font-style:inherit;font-weight:inherit;letter-spacing:inherit;text-transform:inherit}.has-black-color{color:var(--wp--preset--color--black) !important}.has-cyan-bluish-gray-color{color:var(--wp--preset--color--cyan-bluish-gray) !important}.has-white-color{color:var(--wp--preset--color--white) !important}.has-pale-pink-color{color:var(--wp--preset--color--pale-pink) !important}.has-vivid-red-color{color:var(--wp--preset--color--vivid-red) !important}.has-luminous-vivid-orange-color{color:var(--wp--preset--color--luminous-vivid-orange) !important}.has-luminous-vivid-amber-color{color:var(--wp--preset--color--luminous-vivid-amber) !important}.has-light-green-cyan-color{color:var(--wp--preset--color--light-green-cyan) !important}.has-vivid-green-cyan-color{color:var(--wp--preset--color--vivid-green-cyan) !important}.has-pale-cyan-blue-color{color:var(--wp--preset--color--pale-cyan-blue) !important}.has-vivid-cyan-blue-color{color:var(--wp--preset--color--vivid-cyan-blue) !important}.has-vivid-purple-color{color:var(--wp--preset--color--vivid-purple) !important}.has-palette-color-1-color{color:var(--wp--preset--color--palette-color-1) !important}.has-palette-color-2-color{color:var(--wp--preset--color--palette-color-2) !important}.has-palette-color-3-color{color:var(--wp--preset--color--palette-color-3) !important}.has-palette-color-4-color{color:var(--wp--preset--color--palette-color-4) !important}.has-palette-color-5-color{color:var(--wp--preset--color--palette-color-5) !important}.has-palette-color-6-color{color:var(--wp--preset--color--palette-color-6) !important}.has-palette-color-7-color{color:var(--wp--preset--color--palette-color-7) !important}.has-palette-color-8-color{color:var(--wp--preset--color--palette-color-8) !important}.has-black-background-color{background-color:var(--wp--preset--color--black) !important}.has-cyan-bluish-gray-background-color{background-color:var(--wp--preset--color--cyan-bluish-gray) !important}.has-white-background-color{background-color:var(--wp--preset--color--white) !important}.has-pale-pink-background-color{background-color:var(--wp--preset--color--pale-pink) !important}.has-vivid-red-background-color{background-color:var(--wp--preset--color--vivid-red) !important}.has-luminous-vivid-orange-background-color{background-color:var(--wp--preset--color--luminous-vivid-orange) !important}.has-luminous-vivid-amber-background-color{background-color:var(--wp--preset--color--luminous-vivid-amber) !important}.has-light-green-cyan-background-color{background-color:var(--wp--preset--color--light-green-cyan) !important}.has-vivid-green-cyan-background-color{background-color:var(--wp--preset--color--vivid-green-cyan) !important}.has-pale-cyan-blue-background-color{background-color:var(--wp--preset--color--pale-cyan-blue) !important}.has-vivid-cyan-blue-background-color{background-color:var(--wp--preset--color--vivid-cyan-blue) !important}.has-vivid-purple-background-color{background-color:var(--wp--preset--color--vivid-purple) !important}.has-palette-color-1-background-color{background-color:var(--wp--preset--color--palette-color-1) !important}.has-palette-color-2-background-color{background-color:var(--wp--preset--color--palette-color-2) !important}.has-palette-color-3-background-color{background-color:var(--wp--preset--color--palette-color-3) !important}.has-palette-color-4-background-color{background-color:var(--wp--preset--color--palette-color-4) !important}.has-palette-color-5-background-color{background-color:var(--wp--preset--color--palette-color-5) !important}.has-palette-color-6-background-color{background-color:var(--wp--preset--color--palette-color-6) !important}.has-palette-color-7-background-color{background-color:var(--wp--preset--color--palette-color-7) !important}.has-palette-color-8-background-color{background-color:var(--wp--preset--color--palette-color-8) !important}.has-black-border-color{border-color:var(--wp--preset--color--black) !important}.has-cyan-bluish-gray-border-color{border-color:var(--wp--preset--color--cyan-bluish-gray) !important}.has-white-border-color{border-color:var(--wp--preset--color--white) !important}.has-pale-pink-border-color{border-color:var(--wp--preset--color--pale-pink) !important}.has-vivid-red-border-color{border-color:var(--wp--preset--color--vivid-red) !important}.has-luminous-vivid-orange-border-color{border-color:var(--wp--preset--color--luminous-vivid-orange) !important}.has-luminous-vivid-amber-border-color{border-color:var(--wp--preset--color--luminous-vivid-amber) !important}.has-light-green-cyan-border-color{border-color:var(--wp--preset--color--light-green-cyan) !important}.has-vivid-green-cyan-border-color{border-color:var(--wp--preset--color--vivid-green-cyan) !important}.has-pale-cyan-blue-border-color{border-color:var(--wp--preset--color--pale-cyan-blue) !important}.has-vivid-cyan-blue-border-color{border-color:var(--wp--preset--color--vivid-cyan-blue) !important}.has-vivid-purple-border-color{border-color:var(--wp--preset--color--vivid-purple) !important}.has-palette-color-1-border-color{border-color:var(--wp--preset--color--palette-color-1) !important}.has-palette-color-2-border-color{border-color:var(--wp--preset--color--palette-color-2) !important}.has-palette-color-3-border-color{border-color:var(--wp--preset--color--palette-color-3) !important}.has-palette-color-4-border-color{border-color:var(--wp--preset--color--palette-color-4) !important}.has-palette-color-5-border-color{border-color:var(--wp--preset--color--palette-color-5) !important}.has-palette-color-6-border-color{border-color:var(--wp--preset--color--palette-color-6) !important}.has-palette-color-7-border-color{border-color:var(--wp--preset--color--palette-color-7) !important}.has-palette-color-8-border-color{border-color:var(--wp--preset--color--palette-color-8) !important}.has-vivid-cyan-blue-to-vivid-purple-gradient-background{background:var(--wp--preset--gradient--vivid-cyan-blue-to-vivid-purple) !important}.has-light-green-cyan-to-vivid-green-cyan-gradient-background{background:var(--wp--preset--gradient--light-green-cyan-to-vivid-green-cyan) !important}.has-luminous-vivid-amber-to-luminous-vivid-orange-gradient-background{background:var(--wp--preset--gradient--luminous-vivid-amber-to-luminous-vivid-orange) !important}.has-luminous-vivid-orange-to-vivid-red-gradient-background{background:var(--wp--preset--gradient--luminous-vivid-orange-to-vivid-red) !important}.has-very-light-gray-to-cyan-bluish-gray-gradient-background{background:var(--wp--preset--gradient--very-light-gray-to-cyan-bluish-gray) !important}.has-cool-to-warm-spectrum-gradient-background{background:var(--wp--preset--gradient--cool-to-warm-spectrum) !important}.has-blush-light-purple-gradient-background{background:var(--wp--preset--gradient--blush-light-purple) !important}.has-blush-bordeaux-gradient-background{background:var(--wp--preset--gradient--blush-bordeaux) !important}.has-luminous-dusk-gradient-background{background:var(--wp--preset--gradient--luminous-dusk) !important}.has-pale-ocean-gradient-background{background:var(--wp--preset--gradient--pale-ocean) !important}.has-electric-grass-gradient-background{background:var(--wp--preset--gradient--electric-grass) !important}.has-midnight-gradient-background{background:var(--wp--preset--gradient--midnight) !important}.has-juicy-peach-gradient-background{background:var(--wp--preset--gradient--juicy-peach) !important}.has-young-passion-gradient-background{background:var(--wp--preset--gradient--young-passion) !important}.has-true-sunset-gradient-background{background:var(--wp--preset--gradient--true-sunset) !important}.has-morpheus-den-gradient-background{background:var(--wp--preset--gradient--morpheus-den) !important}.has-plum-plate-gradient-background{background:var(--wp--preset--gradient--plum-plate) !important}.has-aqua-splash-gradient-background{background:var(--wp--preset--gradient--aqua-splash) !important}.has-love-kiss-gradient-background{background:var(--wp--preset--gradient--love-kiss) !important}.has-new-retrowave-gradient-background{background:var(--wp--preset--gradient--new-retrowave) !important}.has-plum-bath-gradient-background{background:var(--wp--preset--gradient--plum-bath) !important}.has-high-flight-gradient-background{background:var(--wp--preset--gradient--high-flight) !important}.has-teen-party-gradient-background{background:var(--wp--preset--gradient--teen-party) !important}.has-fabled-sunset-gradient-background{background:var(--wp--preset--gradient--fabled-sunset) !important}.has-arielle-smile-gradient-background{background:var(--wp--preset--gradient--arielle-smile) !important}.has-itmeo-branding-gradient-background{background:var(--wp--preset--gradient--itmeo-branding) !important}.has-deep-blue-gradient-background{background:var(--wp--preset--gradient--deep-blue) !important}.has-strong-bliss-gradient-background{background:var(--wp--preset--gradient--strong-bliss) !important}.has-sweet-period-gradient-background{background:var(--wp--preset--gradient--sweet-period) !important}.has-purple-division-gradient-background{background:var(--wp--preset--gradient--purple-division) !important}.has-cold-evening-gradient-background{background:var(--wp--preset--gradient--cold-evening) !important}.has-mountain-rock-gradient-background{background:var(--wp--preset--gradient--mountain-rock) !important}.has-desert-hump-gradient-background{background:var(--wp--preset--gradient--desert-hump) !important}.has-ethernal-constance-gradient-background{background:var(--wp--preset--gradient--ethernal-constance) !important}.has-happy-memories-gradient-background{background:var(--wp--preset--gradient--happy-memories) !important}.has-grown-early-gradient-background{background:var(--wp--preset--gradient--grown-early) !important}.has-morning-salad-gradient-background{background:var(--wp--preset--gradient--morning-salad) !important}.has-night-call-gradient-background{background:var(--wp--preset--gradient--night-call) !important}.has-mind-crawl-gradient-background{background:var(--wp--preset--gradient--mind-crawl) !important}.has-angel-care-gradient-background{background:var(--wp--preset--gradient--angel-care) !important}.has-juicy-cake-gradient-background{background:var(--wp--preset--gradient--juicy-cake) !important}.has-rich-metal-gradient-background{background:var(--wp--preset--gradient--rich-metal) !important}.has-mole-hall-gradient-background{background:var(--wp--preset--gradient--mole-hall) !important}.has-cloudy-knoxville-gradient-background{background:var(--wp--preset--gradient--cloudy-knoxville) !important}.has-soft-grass-gradient-background{background:var(--wp--preset--gradient--soft-grass) !important}.has-saint-petersburg-gradient-background{background:var(--wp--preset--gradient--saint-petersburg) !important}.has-everlasting-sky-gradient-background{background:var(--wp--preset--gradient--everlasting-sky) !important}.has-kind-steel-gradient-background{background:var(--wp--preset--gradient--kind-steel) !important}.has-over-sun-gradient-background{background:var(--wp--preset--gradient--over-sun) !important}.has-premium-white-gradient-background{background:var(--wp--preset--gradient--premium-white) !important}.has-clean-mirror-gradient-background{background:var(--wp--preset--gradient--clean-mirror) !important}.has-wild-apple-gradient-background{background:var(--wp--preset--gradient--wild-apple) !important}.has-snow-again-gradient-background{background:var(--wp--preset--gradient--snow-again) !important}.has-confident-cloud-gradient-background{background:var(--wp--preset--gradient--confident-cloud) !important}.has-glass-water-gradient-background{background:var(--wp--preset--gradient--glass-water) !important}.has-perfect-white-gradient-background{background:var(--wp--preset--gradient--perfect-white) !important}.has-small-font-size{font-size:var(--wp--preset--font-size--small) !important}.has-medium-font-size{font-size:var(--wp--preset--font-size--medium) !important}.has-large-font-size{font-size:var(--wp--preset--font-size--large) !important}.has-x-large-font-size{font-size:var(--wp--preset--font-size--x-large) !important}.has-xx-large-font-size{font-size:var(--wp--preset--font-size--xx-large) !important}.woocommerce form .form-row .required{visibility:visible}:root{--gb-container-width:1100px}.gb-container .wp-block-image img{vertical-align:middle}.gb-grid-wrapper .wp-block-image{margin-bottom:0}.gb-highlight{background:none}.gb-shape{line-height:0}:root{--global-kb-font-size-sm:clamp(.8rem,.73rem + .217vw,.9rem);--global-kb-font-size-md:clamp(1.1rem,.995rem + .326vw,1.25rem);--global-kb-font-size-lg:clamp(1.75rem,1.576rem + .543vw,2rem);--global-kb-font-size-xl:clamp(2.25rem,1.728rem + 1.63vw,3rem);--global-kb-font-size-xxl:clamp(2.5rem,1.456rem + 3.26vw,4rem);--global-kb-font-size-xxxl:clamp(2.75rem,.489rem + 7.065vw,6rem)}:root{--global-palette1:#3182ce;--global-palette2:#2b6cb0;--global-palette3:#1a202c;--global-palette4:#2d3748;--global-palette5:#4a5568;--global-palette6:#718096;--global-palette7:#edf2f7;--global-palette8:#f7fafc;--global-palette9:#fff}.wc-block-product-categories-list{list-style:none !important;padding:0 !important;margin:0 !important}.wc-block-product-categories-list--depth-0>.wc-block-product-categories-list-item{display:flex;flex-wrap:wrap;align-items:center;border-bottom:2px solid #1e2d4e;margin-bottom:8px;padding-bottom:6px}.wc-block-product-categories-list--depth-0>.wc-block-product-categories-list-item>a{flex:1;font-weight:bold;font-size:15px;color:#1e2d4e !important;text-decoration:none}.wc-block-product-categories-list--depth-0>.wc-block-product-categories-list-item>.wc-block-product-categories-list-item__count{display:none}.wc-block-product-categories-list--depth-0>.wc-block-product-categories-list-item>ul{width:100%}.wc-block-product-categories-list--depth-1>.wc-block-product-categories-list-item{display:flex;align-items:center;border-left:3px solid #ddd;margin-bottom:3px;transition:all .2s}.wc-block-product-categories-list--depth-1>.wc-block-product-categories-list-item:hover{border-left-color:#f5a623}.wc-block-product-categories-list--depth-1>.wc-block-product-categories-list-item>a{flex:1;padding:6px 0 6px 12px !important;color:#555 !important;text-decoration:none !important;font-size:13px;transition:all .2s}.wc-block-product-categories-list--depth-1>.wc-block-product-categories-list-item>a:hover{color:#f5a623 !important}.wc-block-product-categories-list--depth-1 .wc-block-product-categories-list-item__count{font-size:10px;color:#bbb;padding-right:8px}

Rollenleiste Typ 100 – 1200mm

Rollenleiste Typ 100 – 1200mm

Profil Typ U, dick 1mm

Stahl verzinkt

Röllchen Ø 29 mm, PP, schwarz

Röllchenabstand: 33

Tragfähigkeit: 10 kg/Rolle

Rollchenlänge: 23 mm, Gleitlager

Arbeitstemperatur: -25°C – +50°C

Stahlbolzen Ø 5 mm

Länge L=1200 mm

Die Rollenleiste Typ 100 | 1200mm

Probe

Datei STP

Montagehinweise

Rollenleiste Typ 100 – 1200mm

Profil Typ U, dick 1mm

Stahl verzinkt

Röllchen Ø 29 mm, PP, schwarz

Röllchenabstand: 33

Tragfähigkeit: 10 kg/Rolle

Rollchenlänge: 23 mm, Gleitlager

Arbeitstemperatur: -25°C – +50°C

Stahlbolzen Ø 5 mm

Länge L=1200 mm

Die Rollenleiste Typ 100 | 1200mm

Probe

Datei STP

Montagehinweise
